Display CPU and Virtual Memory in Realtime with PyQt6 and Matplotlib

 This demo program shows how to display in real time the CPU usage and Virtual Memory Usage in % using a donut shape graph from matplotlib.

The output:

The Code:

1 159

import sys import psutil import os from PyQt6.QtWidgets import QApplication, QWidget, QLabel from PyQt6.QtGui import QFont from PyQt6.QtCore import QTimer, QTime, Qt from matplotlib.backends.backend_qt5agg import FigureCanvasQTAgg from matplotlib.figure import Figure from matplotlib.patches import Circle i = 5 d = 95 class MplCanvas(FigureCanvasQTAgg): def __init__(self, parent=None, width=5, height=4, dpi=100): super(MplCanvas, self).__init__(Figure(figsize=(width, height), dpi=dpi)) self.axes = self.figure.add_subplot(111) self.setParent(parent) class MplWidget(QWidget): def __init__(self, parent=None): global i global d QWidget.__init__(self, parent) self.canvas = MplCanvas(self) self.canvas1 = MplCanvas(self) d = 100 - i labels = ["a", "b"] data = [d, i] #colors = ["#f2f2f2", "#ff9999"] colors = ["#f2f2f2", "blue"] self.canvas.axes.pie( data, colors=colors, startangle=90, pctdistance=0.85 ) self.canvas1.axes.pie( data, colors=colors, startangle=90, pctdistance=0.85 ) centre_circle = Circle((0, 0), 0.70, fc="white") self.canvas.axes.add_artist(centre_circle) self.canvas.axes.axis("equal") self.canvas.figure.tight_layout() self.canvas.setGeometry(75,75,100,100) self.canvas.draw() centre_circle1 = Circle((0, 0), 0.70, fc="white") self.canvas1.axes.add_artist(centre_circle1) self.canvas1.axes.axis("equal") self.canvas1.figure.tight_layout() self.canvas1.setGeometry(200,75,100,100) self.canvas1.draw() fnt = QFont('Open Sans', 11, QFont.Weight.Bold) fnt1 = QFont('Open Sans', 9) self.lbl = QLabel(self) self.lbl.setAlignment(Qt.AlignmentFlag.AlignCenter) self.lbl.setFont(fnt) self.lbl.setGeometry(78,110,100, 30) self.lbl1 = QLabel(self) self.lbl1.setAlignment(Qt.AlignmentFlag.AlignCenter) self.lbl1.setFont(fnt1) self.lbl1.setGeometry(78,50,100, 30) self.lbl1.setText('CPU Usage') self.lbl2 = QLabel(self) self.lbl2.setAlignment(Qt.AlignmentFlag.AlignCenter) self.lbl2.setFont(fnt) self.lbl2.setGeometry(200,110,100, 30) self.lbl3 = QLabel(self) self.lbl3.setAlignment(Qt.AlignmentFlag.AlignCenter) self.lbl3.setFont(fnt1) self.lbl3.setGeometry(200,50,100, 30) self.lbl3.setText('Virtual Mem Usage') timer = QTimer(self) timer.timeout.connect(self.showTime) timer.start(10000) # update every second self.setGeometry(50,75,400,250) self.setWindowTitle('Post 29') self.showTime() def showTime(self): global i global d #currentTime = QTime.currentTime() i = psutil.cpu_percent() #displayTxt = currentTime.toString('hh:mm:ss') self.lbl.setText(str(i) + '%') d = 100 - i labels = ["a", "b"] data = [d, i] colors = ["#f2f2f2", "blue"] self.canvas.axes.pie( data, colors=colors, startangle=90, pctdistance=1 ) colors = ["#f2f2f2", "green"] centre_circle = Circle((0, 0), 0.85, fc="white") self.canvas.axes.add_artist(centre_circle) self.canvas.axes.axis("equal") self.canvas.figure.tight_layout() self.canvas.setGeometry(75,75,100,100) self.canvas.draw() i = psutil.virtual_memory().available * 100 / psutil.virtual_memory().total self.lbl2.setText(str(round(i,2)) + '%') d = 100 - i data = [d, i] self.canvas1.axes.pie( data, colors=colors, startangle=90, pctdistance=1 ) centre_circle1 = Circle((0, 0), 0.85, fc="white") self.canvas1.axes.add_artist(centre_circle1) self.canvas1.axes.axis("equal") self.canvas1.figure.tight_layout() self.canvas1.setGeometry(200,75,100,100) self.canvas1.draw() #self.update i = i + 5 def main(): app = QApplication(sys.argv) widget = MplWidget() widget.show() sys.exit(app.exec()) if __name__ == "__main__": main()

Display Map with Markers and Polygons with Folium and PyQt6

This demo program show how to create a folium map and attach it to qwbengineview to place is anywhere on a window and update the map with a press of a button.

The Output:

The code:

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70

import sys import io import folium from PyQt5.QtWidgets import QApplication, QWidget, QMainWindow, QApplication, QPushButton from PyQt5.QtWebEngineWidgets import QWebEngineView # pip install PyQtWebEngine class Window(QMainWindow): def __init__(self): super(Window, self).__init__() self.initUI() def initUI(self): self.pb1 = QPushButton('Update', self) self.pb1.setGeometry(340, 330, 100, 30) self.pb1.clicked.connect(self.onClick_pb2) coordinate = (15.872172863923, 120.39238696289) m = folium.Map( #tiles='Stamen Terrain', #tiles='cartodbpositron', tiles='Stamen Toner', zoom_start=13, location=coordinate ) folium.Rectangle([(15.882172863923, 120.41238696289), (15.862172863923, 120.38238696289)], color="blue", weight=1, fill=True, fill_color="blue", fill_opacity=0.1).add_to(m) folium.Marker(location=[15.872172863923, 120.39238696289],popup='Basista',tooltip='Click here to see Popup',icon=folium.Icon(color='purple',prefix='fa',icon='anchor')).add_to(m) # save map data to data object data = io.BytesIO() m.save(data, close_file=False) self.webView = QWebEngineView(self) self.webView.setHtml(data.getvalue().decode()) self.webView.setGeometry(20,20, 420,280) self.setGeometry(25, 45, 450, 370) self.setWindowTitle('Post 28') self.show() def onClick_pb2(self): coordinate1 = (14.5409, 121.0503) m = folium.Map( #tiles='Stamen Terrain', tiles='cartodbpositron', zoom_start=18, location=coordinate1 ) folium.Circle(location=[14.5409, 121.0503], popup='BGC', fill_color='green', fill_opacity=0.1, radius=50, weight=0, color="green").add_to(m) folium.Marker(location=[14.5409, 121.0503],popup='BGC',tooltip='Click here to see Popup').add_to(m) data = io.BytesIO() m.save(data, close_file=False) self.webView.setHtml(data.getvalue().decode()) def main(): app = QApplication(sys.argv) ex = Window() ex.show() sys.exit(app.exec()) if __name__ == '__main__': main()

Create Volume Control Dial, List box, Toggle Button, Slider and a Spin Box in PyQt6

This demo program shows how to create Volume Control Dial, List box, Toggle Button, Slider and a Spin Box and place on specific location in a window.

The output:

The code:

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120

from PyQt6.QtWidgets import (QWidget, QSlider, QListWidget, QSpinBox, QPushButton, QDial, QLabel, QApplication) from PyQt6.QtCore import Qt from PyQt6.QtGui import QPixmap import sys on_load = 0 class Example(QWidget): def __init__(self): super().__init__() self.initUI() def initUI(self): self.redb = QPushButton('Horizontal', self) self.redb.setCheckable(True) self.redb.setGeometry(20, 5, 80, 20) self.redb.clicked[bool].connect(self.setColor) self.sld = QSlider(Qt.Orientation.Horizontal, self) self.sld.setFocusPolicy(Qt.FocusPolicy.NoFocus) self.sld.setGeometry(30, 45, 200, 30) self.sld.valueChanged[int].connect(self.changeValue) self.sld.setSingleStep(2) self.sld1 = QSlider(Qt.Orientation.Vertical, self) self.sld1.setFocusPolicy(Qt.FocusPolicy.NoFocus) self.sld1.setGeometry(255, 45, 30, 200) self.sld1.valueChanged[int].connect(self.changeValue1) self.sld1.setSingleStep(2) self.label = QLabel(self) self.label.setGeometry(30, 20, 200, 30) self.label.setAlignment(Qt.AlignmentFlag.AlignCenter) self.widget = QListWidget(self) self.widget.addItems(["One", "Two", "Three"]) self.widget.setGeometry(30, 95, 75, 120) self.llabel = QLabel(self) self.llabel.setGeometry(100, 115, 75, 30) self.llabel.setAlignment(Qt.AlignmentFlag.AlignCenter) self.label.setText('slide the bar') self.llabel.setText('click an item') #self.widget.currentItemChanged.connect(self.index_changed) self.widget.currentTextChanged.connect(self.text_changed) self.widget1 = QSpinBox(self) self.widget1.setMinimum(-10) self.widget1.setMaximum(10) self.widget1.setPrefix("$") self.widget1.setSuffix("c") self.widget1.setGeometry(30, 235, 75, 30) self.slabel = QLabel(self) self.slabel.setGeometry(115, 235, 75, 30) self.slabel.setText('click to change the value') self.dialer = QDial(self) self.dialer.setRange(0, 100) self.dialer.setSingleStep(0.5) self.dialer.valueChanged.connect(self.value_changed_dialer) self.dialer.setNotchesVisible(True) self.dialer.move(110,300) self.dslabel = QLabel(self) self.dslabel.setGeometry(125, 400, 75, 30) self.dslabel.setText('rotate the dial') self.dslabel.setAlignment(Qt.AlignmentFlag.AlignCenter) self.widget1.textChanged.connect(self.value_changed_str) self.setGeometry(200, 100, 350, 430) self.setWindowTitle('Post 27') self.show() def value_changed_dialer(self, i): self.dslabel.setText(str(i)) def setColor(self, pressed): if pressed: self.redb.setText("Vertical") else: self.redb.setText("Horizontal") def value_changed_str(self, s): self.slabel.setText(s) #def index_changed(self, i): # Not an index, i is a QListItem # print(i.text()) # self.llabel.setText(i.text()) def text_changed(self, s): # s is a str global on_load print(s) if on_load == 1: self.llabel.setText(s) on_load = 1 def changeValue(self, value): self.label.setText(str(value)) self.sld1.setValue(value) self.sld1.repaint() def changeValue1(self, value): self.label.setText(str(value)) self.sld.setValue(value) self.sld.repaint() def main(): app = QApplication(sys.argv) ex = Example() sys.exit(app.exec()) if __name__ == '__main__': main() on_load = 1

Checkbox, Radiobutton and ComboBox in PyQt6

This demo program shows how to create checkbox, radiobutton and combobox and place them at certain location in the window.

The output:

The Code:

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180 181 182 183 184 185 186 187 188 189 190 191 192 193 194 195 196 197 198 199

import sys import os from PyQt6.QtWidgets import QMainWindow, QApplication, QWidget, QComboBox, QLineEdit, QLabel, QRadioButton, QButtonGroup, QCheckBox, QHBoxLayout, QVBoxLayout from PyQt6 import QtCore, QtGui class Window(QMainWindow): def __init__(self): super(Window, self).__init__() self.initUI() def initUI(self): self.setCentralWidget(QWidget(self)) self.line_edit = QLineEdit(self) self.line_edit.setGeometry(25, 25, 150, 40) self.line_edit.setFocusPolicy(QtCore.Qt.FocusPolicy.StrongFocus) self.line_edit.setFocus() self.line_edit.setPlaceholderText('Enter Text Here') self.linelabel = QLabel('Entered Text Here', self) self.linelabel.setGeometry(25, 35, 180, 120) self.linelabel.setWordWrap(True) self.langs ={'c':0, 'cpp':0, 'java':0, 'python':0} self.checkBox_c = QCheckBox(self) self.checkBox_c.setGeometry(25, 155, 81, 20) self.checkBox_c.stateChanged.connect(self.checkedc) self.checkBox_cpp = QCheckBox(self) self.checkBox_cpp.setGeometry(116, 155, 81, 20) self.checkBox_cpp.stateChanged.connect(self.checkedcpp) self.checkBox_java = QCheckBox(self) self.checkBox_java.setGeometry(207, 155, 81, 20) self.checkBox_java.stateChanged.connect(self.checkedjava) self.checkBox_py = QCheckBox(self) self.checkBox_py.setGeometry(298, 155, 81, 20) self.checkBox_py.stateChanged.connect(self.checkedpy) self.checkBox_c.setText("C") self.checkBox_cpp.setText( "C++") self.checkBox_java.setText("Java") self.checkBox_py.setText("Python") self.clabel1 = QLabel(self) self.clabel1.setGeometry(25, 130, 200, 20) self.clabel1.setText("Select the Language you know:") self.radioButton_male = QRadioButton(self) self.radioButton_male.setGeometry(45, 200, 81, 20) self.radioButton_male.toggled.connect(self.maleselected) self.radioButton_female = QRadioButton(self) self.radioButton_female.setGeometry(45, 225, 81, 20) self.radioButton_female.toggled.connect(self.femaleselected) self.radioButton_small = QRadioButton(self) self.radioButton_small.setGeometry(215, 200, 81, 20) self.radioButton_small.toggled.connect(self.smallselected) self.radioButton_medium = QRadioButton(self) self.radioButton_medium.setGeometry(215, 225, 81, 20) self.radioButton_medium.toggled.connect(self.mediumselected) self.radioButton_large = QRadioButton(self) self.radioButton_large.setGeometry(215, 245, 81, 20) self.radioButton_large.toggled.connect(self.largeselected) self.label = QLabel(self) self.label.setGeometry(45, 250, 150, 20) self.slabel = QLabel(self) self.slabel.setGeometry(215, 270, 150, 20) self.radioButton_male.setText("Male") self.label.setText("Select your gender:") self.radioButton_female.setText("Female") self.radioButton_small.setText("Small") self.radioButton_medium.setText("Medium") self.slabel.setText("Select your size:") self.radioButton_large.setText("Large") gender_group=QButtonGroup(self) size_group=QButtonGroup(self) gender_group.addButton(self.radioButton_male) gender_group.addButton(self.radioButton_female) size_group.addButton(self.radioButton_small) size_group.addButton(self.radioButton_medium) size_group.addButton(self.radioButton_large) self.combo_box = QComboBox(self) self.combo_box.setGeometry(125, 315, 120, 20) self.combo_box.addItem("Black") self.combo_box.addItem("Blue") self.combo_box.addItem("Brown") self.combo_box.addItem("Red") self.combo_box_label = QLabel(self) self.combo_box_label.setGeometry(25, 315, 100, 20) self.combo_box_label.setText("Select color:") self.combo_box_label_s = QLabel(self) self.combo_box_label_s.setGeometry(255, 315, 100, 20) self.line_edit.returnPressed.connect(lambda: self.do_action()) self.combo_box.activated.connect(self.on_combobox_changed) self.setGeometry(25, 45, 400, 360) self.setWindowTitle('Post 26') self.show() def on_combobox_changed(self, value): print("combobox changed", value) self.combo_box_label_s.setText(self.combo_box.currentText()) def mouseMoveEvent(self, e): x = int(e.position().x()) y = int(e.position().y()) #text = f'x: {x}, y: {y}' #self.linelabel.setText(text) self.line_edit.setFocus() def maleselected(self, selected): if selected: self.label.setText("You are male") def femaleselected(self, selected): if selected: self.label.setText("You are female") def smallselected(self, selected): if selected: self.slabel.setText("Your size is small") def mediumselected(self, selected): if selected: self.slabel.setText("Your size is medium") def largeselected(self, selected): if selected: self.slabel.setText("Your size is large") def checkedc(self, checked): if checked: self.langs['c']= 1 else: self.langs['c']= 0 self.show1() def checkedcpp(self, checked): if checked: self.langs['cpp']= 1 else: self.langs['cpp']= 0 self.show1() def checkedjava(self, checked): if checked: self.langs['java']= 1 else: self.langs['java']= 0 self.show1() def checkedpy(self, checked): if checked: self.langs['python']= 1 else: self.langs['python']= 0 self.show1() def show1(self): checkedlangs =', '.join([key for key in self.langs.keys() if self.langs[key]== 1]) # Updates message having list of all selected languages. self.clabel1.setText("You know "+checkedlangs) def do_action(self): value = self.line_edit.text() self.linelabel.setText(value) def main(): app = QApplication(sys.argv) ex = Window() ex.show() sys.exit(app.exec()) if __name__ == '__main__': main()

Upgrade 01: PyQt6 Desktop App Template

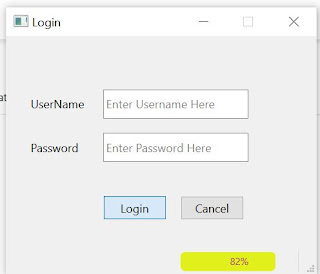

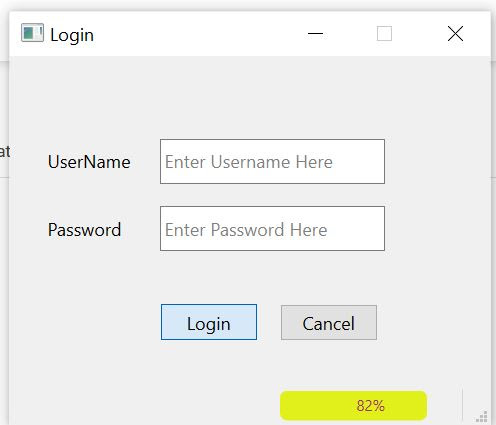

This demo program shows another way to implement the Desktop App Template using modularized approach(I created the import.py to handle import common libraries of the the window files(splash, login, mainw), a sidebar menu has been added which is from the previous post "Create Treeview with PyQt6" and I added a progress bar at the newly added status of the login screen of which code is derrived from my previous post "Progressbar with PyQt6".  If you prefer the old version you may still access it with the original post.

The Output:



The Code

imports.py:

1 2 3 4 5 6 7 8 9 10

import PyQt6.QtWidgets as a import PyQt6.QtCore as f import PyQt6.QtGui as g import PyQt6 as p import sys as s import os as o import time as t __all__ = [ 'a', 'f', 'g', 'p', 's', 'o', 't' ]



splash.py:

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102

from imports import * from login import WindowApp class SplashScreen(a.QWidget): def __init__(self, parent=None): super().__init__() self.setFixedSize(700, 350) self.setWindowFlag(f.Qt.WindowType.FramelessWindowHint) self.setAttribute(f.Qt.WidgetAttribute.WA_TranslucentBackground) self.counter = 0 self.n = 100 self.initUI() self.timer = f.QTimer() self.timer.timeout.connect(self.loading) self.timer.start(30) def initUI(self): # layout to display splash scrren frame layout = a.QVBoxLayout() self.setLayout(layout) # splash screen frame self.frame = a.QFrame() layout.addWidget(self.frame) # splash screen title self.title_label = a.QLabel(self.frame) self.title_label.setObjectName('title_label') self.title_label.resize(690, 120) self.title_label.move(0, 5) # x, y self.title_label.setText('Your World Famous App') self.title_label.setAlignment(f.Qt.AlignmentFlag.AlignCenter) # splash screen title description self.description_label = a.QLabel(self.frame) self.description_label.resize(690, 40) self.description_label.move(0, self.title_label.height()) self.description_label.setObjectName('desc_label') self.description_label.setText('<b>We build the systems and the apps.</b>') self.description_label.setAlignment(f.Qt.AlignmentFlag.AlignCenter) # splash screen pogressbar self.progressBar = a.QProgressBar(self.frame) self.progressBar.resize(self.width() - 200 - 10, 50) self.progressBar.move(100, 180) # self.description_label.y()+130 self.progressBar.setAlignment(f.Qt.AlignmentFlag.AlignCenter) self.progressBar.setFormat('%p%') self.progressBar.setTextVisible(True) self.progressBar.setRange(0, self.n) self.progressBar.setValue(20) self.progressBar.setStyleSheet("""QProgressBar { background-color: #000000; color: #9B2F6A; border-style: none; border-radius: 5px; text-align: center; font-size: 25px; } QProgressBar::chunk { border-radius: 7px; background-color: qlineargradient(spread:pad x1:0, x2:1, y1:0.511364, y2:0.523, stop:0 #E1F01A); }""") # spash screen loading label self.loading_label = a.QLabel(self.frame) self.loading_label.resize(self.width() - 10, 50) self.loading_label.move(0, self.progressBar.y() + 70) self.loading_label.setObjectName('loading_label') self.loading_label.setAlignment(f.Qt.AlignmentFlag.AlignCenter) self.loading_label.setText('Loading...') def loading(self): # set progressbar value self.progressBar.setValue(self.counter) # stop progress if counter # is greater than n and # display main window app if self.counter >= self.n: self.timer.stop() self.close() t.sleep(1) self.showLogin() self.counter += 1 def showLogin(self): self.login = WindowApp(self) self.login.show() if __name__ == "__main__": app = a.QApplication(s.argv) app.setStyleSheet(''' #title_label { font-size: 50px; color: #F0B21A; } #desc_label { font-size: 15px; color: #F0B21A; } #loading_label { font-size: 20px; color: #F0B21A; } QFrame { background-color: #2F339B; color: #c8c8c8; } ''') splash = SplashScreen() splash.show() s.exit(app.exec())



login.py:

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102

from imports import * from mainw import Window2 TIME_LIMIT = 100 class WindowApp(a.QMainWindow): def __init__(self, parent=None): super().__init__() self.setWindowTitle("Login") self.setFixedSize(320, 245) self.quit = g.QAction("Quit", self) self.quit.triggered.connect(self.closeEvent) self.move(400, 200) lblusr = a.QLabel('UserName', self) lblusr.setStyleSheet('QLabel {background-color: transparent; color: black;}') lblusr.setGeometry(25, 55, 100, 30) txtusr = a.QLineEdit('', self) txtusr.setGeometry(100, 55, 150, 30) lblpwd = a.QLabel('Password', self) lblpwd.setStyleSheet('QLabel {background-color: transparent; color: black;}') lblpwd.setGeometry(25, 100, 100, 30) txtpwd = a.QLineEdit('', self) txtusr.setPlaceholderText("Enter Username Here") txtpwd.setPlaceholderText("Enter Password Here") txtpwd.setGeometry(100, 100, 150, 30) txtpwd.setEchoMode(a.QLineEdit.EchoMode.Password) pblogin = a.QPushButton('Login', self) pblogin.setGeometry(100, 165, 65, 25) pblogin.clicked.connect(self.onClick_pb3) pbcanc = a.QPushButton('Cancel', self) pbcanc.setGeometry(180, 165, 65, 25) pbcanc.clicked.connect(self.onClick_pb4) self.statusBar = a.QStatusBar() self.setStatusBar(self.statusBar) self.statusBar.showMessage("Ready", 5000) #self.show() self.progressBar = a.QProgressBar() self.progressBar.setStyleSheet("""QProgressBar { background-color: transparent; color: #9B2F6A; border-style: none; border-radius: 5px; text-align: center; font-size: 10px; } QProgressBar::chunk { border-radius: 5px; background-color: qlineargradient(spread:pad x1:0, x2:1, y1:0.511364, y2:0.523, stop:0 #E1F01A); }""") self.statusBar.addPermanentWidget(self.progressBar) self.progressBar.move(30, 40) self.progressBar.setFixedSize(120, 20) #self.progressBar.setValue(100) def closeEvent(self, event): close = a.QMessageBox() close.setIcon(a.QMessageBox.Icon.Question) close.setWindowTitle('Pls confirm') close.setStyleSheet('QLabel {background-color: transparent; color: black;}') close.setText("Do you really want to quit?") close.setStandardButtons(a.QMessageBox.StandardButton.Yes | a.QMessageBox.StandardButton.Cancel) close = close.exec() if close == a.QMessageBox.StandardButton.Yes: event.accept() else: event.ignore() def onClick_pb3(self): count = 0 while count < TIME_LIMIT: count += 1 t.sleep(0.01) self.progressBar.setValue(count) self.showWindow2() #self.w = Window2() #self.w.show() self.hide() def showWindow2(self): self.mdiwindow = Window2() self.mdiwindow.show() def onClick_pb4(self): self.quit self.close() if __name__ == "__main__": app = a.QApplication(s.argv) app.setStyleSheet(''' QProgressBar { background-color: #000000; color: #9B2F6A; border-style: none; border-radius: 4px; text-align: center; font-size: 10px; } QProgressBar::chunk { border-radius: 4px; background-color: qlineargradient(spread:pad x1:0, x2:1, y1:0.511364, y2:0.523, stop:0 #E1F01A); } ''') splash = WindowApp() splash.show() s.exit(app.exec())

mainw.py:

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180 181 182 183 184 185 186 187 188 189 190 191 192 193 194 195 196 197 198 199 200 201 202 203 204 205 206 207 208 209 210 211 212 213 214 215 216 217 218

from imports import * x_init = 0 class StandardItem(g.QStandardItem): def __init__(self, txt='', font_size=12, set_bold=False, color=g.QColor(0, 0, 0), color1=g.QColor(0, 0, 0)): super().__init__() fnt = g.QFont('Open Sans', font_size) fnt.setBold(set_bold) self.setEditable(False) self.setForeground(color) self.setBackground(color1) self.setFont(fnt) self.setText(txt) class Window2(a.QMainWindow): count = 0 def __init__(self): super().__init__() self.installEventFilter(self) self.quit = g.QAction("Quit", self) self.quit.triggered.connect(self.closeEvent) self.mdi = a.QMdiArea() self.treeView = a.QTreeView() self.treeView.setHeaderHidden(True) treeModel = g.QStandardItemModel() rootNode = treeModel.invisibleRootItem() america = StandardItem('Accounting', 12, set_bold=True, color1=g.QColor('#4d88ff')) california = StandardItem(' Accounts Payable', 10, color1=g.QColor('#80aaff')) america.appendRow(california) oakland = StandardItem(' Vendors', 8, color=g.QColor('#3939ac'), color1=g.QColor('#b3ccff')) sanfrancisco = StandardItem(' Incoming Invoice', 8, color=g.QColor('#3939ac'), color1=g.QColor('#b3ccff')) sanjose = StandardItem(' Purchases', 8, color=g.QColor('#3939ac'), color1=g.QColor('#b3ccff')) california.appendRow(oakland) california.appendRow(sanfrancisco) california.appendRow(sanjose) texas = StandardItem(' Accounts Receivable', 10, color1=g.QColor('#80aaff')) america.appendRow(texas) austin = StandardItem(' Customers', 8, color=g.QColor('#3939ac'), color1=g.QColor('#b3ccff')) houston = StandardItem(' Outbound Invoices', 8, color=g.QColor('#3939ac'), color1=g.QColor('#b3ccff')) cali = StandardItem(' Dunning', 8, color=g.QColor('#3939ac'), color1=g.QColor('#b3ccff')) dallas = StandardItem(' Sales', 8, color=g.QColor('#3939ac'), color1=g.QColor('#b3ccff')) texas.appendRow(austin) texas.appendRow(houston) texas.appendRow(cali) texas.appendRow(dallas) # Canada canada = StandardItem('Logistics', 12, set_bold=True, color1=g.QColor('#4d88ff')) alberta = StandardItem(' Inventory', 10, color1=g.QColor('#80aaff')) bc = StandardItem(' Materials', 10, color1=g.QColor('#80aaff')) ontario = StandardItem(' Deliveries', 10, color1=g.QColor('#80aaff')) canada.appendRows([alberta, bc, ontario]) rootNode.appendRow(america) rootNode.appendRow(canada) self.treeView.setModel(treeModel) self.treeView.expandAll() self.treeView.doubleClicked.connect(self.getValue) self.treeView.setIndentation(0) self.treeView.setAlternatingRowColors(True) self.treeView.setFixedSize(160,self.height()-25) self.setCentralWidget(a.QWidget(self)) windowLayout = a.QHBoxLayout(self) windowLayout.addWidget(self.treeView, alignment=f.Qt.AlignmentFlag.AlignTop) windowLayout.addWidget(self.mdi, alignment=f.Qt.AlignmentFlag.AlignTop) self.centralWidget().setLayout(windowLayout) #self.setCentralWidget(self.mdi) self.toolbar = a.QToolBar("Documents") self.toolbar.setMovable(False) toolbar1 = a.QToolBar("Messages") self.toolbar.setIconSize(f.QSize(30,30)) toolbar1.setIconSize(f.QSize(30,30)) self.addToolBar(self.toolbar) self.new_action = g.QAction(g.QIcon(r"c:\crud\icons\document--plus.png"), "&New", self) self.new_action.setStatusTip("New Document") self.new_action.triggered.connect(self.onNewClick) #button_action.setCheckable(True) self.new_action.setShortcut(g.QKeySequence("Ctrl+p")) chg_action = g.QAction(g.QIcon(r"c:\crud\icons\document--pencil.png"), "&Change", self) chg_action.setStatusTip("Change Document") chg_action.triggered.connect(self.onClick) chg_action.setCheckable(True) self.toolbar.addAction(self.new_action) self.toolbar.addAction(chg_action) self.addToolBar(toolbar1) inbox_action = g.QAction(g.QIcon(r"c:\crud\icons\inbox--plus.png"), "&Add Message", self) inbox_action.setStatusTip("Add Message") inbox_action.triggered.connect(self.onClick) inbox_action.setCheckable(True) inbox_action.setShortcut(g.QKeySequence("Ctrl+m")) inbox_action1 = g.QAction(g.QIcon(r"c:\crud\icons\inbox--minus.png"), "&Remove Message", self) inbox_action1.setStatusTip("Remove Message") inbox_action1.triggered.connect(self.onClick) inbox_action1.setCheckable(True) inbox_action1.setShortcut(g.QKeySequence("Ctrl+n")) exit_action = g.QAction(g.QIcon(r"c:\crud\icons\door-open-out.png"), "&Exit", self) exit_action.setStatusTip("Exit") exit_action.triggered.connect(self.onExitClick) exit_action.setShortcut(g.QKeySequence("Ctrl+x")) toolbar1.addAction(inbox_action) toolbar1.addAction(inbox_action1) self.statusBar = a.QStatusBar() self.setStatusBar(self.statusBar) self.statusBar.showMessage("Ready", 3000) menu = self.menuBar() file_menu = menu.addMenu("&File") file_menu.addAction(self.new_action) file_menu.addAction(chg_action) file_menu.addSeparator() file_submenu = file_menu.addMenu("Messages") file_submenu.addAction(inbox_action) file_submenu.addAction(inbox_action1) file_menu.addSeparator() file_menu.addAction(exit_action) bar = self.menuBar() file = bar.addMenu("Window") file.addAction("Cascade") file.addAction("Tile") file.triggered[g.QAction].connect(self.click) tb = bar.addMenu("Toolbar") tb.addAction("Hide Documents Toolbar") tb.addAction("Unhide Documents Toolbar") tb.triggered[g.QAction].connect(self.click) tb1 = bar.addMenu("System") tb1.addAction("About This Template") tb1.triggered[g.QAction].connect(self.about) self.setGeometry(125,75,850,350) #windowLayout = QVBoxLayout(self) #windowLayout.addWidget(self.mdi, alignment=Qt.AlignmentFlag.AlignTop) self.setWindowTitle("The App System") def resizeEvent(self, event): self.treeView.setFixedSize(160,self.height()-102) def closeEvent(self, event): close = a.QMessageBox() close.setIcon(a.QMessageBox.Icon.Question) close.setWindowTitle('Pls confirm') close.setStyleSheet('QLabel {background-color: transparent; color: black;}') close.setText("Do you really want to quit?") close.setStandardButtons(a.QMessageBox.StandardButton.Yes | a.QMessageBox.StandardButton.Cancel) close = close.exec() if close == a.QMessageBox.StandardButton.Yes: event.accept() else: event.ignore() def getValue(self, val): print(val.data()) print(val.row()) print(val.column()) def contextMenuEvent(self, event): menu = a.QMenu(self) menu.addAction(self.new_action) menu.exec(event.globalPos()) def onClick(self, s): print("click",s) def onExitClick(self, s): self.quit self.close() def about(self, s): aboutm = a.QMessageBox() aboutm.setIcon(a.QMessageBox.Icon.Information) aboutm.setWindowTitle('Software Information') aboutm.setStyleSheet('QLabel {background-color: transparent; color: black;}') aboutm.setText("Title: Simple App Template \n Version: 1.00 \n Release Date: April 19, 2022") aboutm.setStandardButtons(a.QMessageBox.StandardButton.Ok) aboutm = aboutm.exec() def onNewClick(self, s): Window2.count = Window2.count+1 sub = a.QMdiSubWindow() lbl1a = a.QLabel('RECS', sub) lbl1a.setGeometry(25, 75, 50, 35) lbl1a.setStyleSheet('QLabel {background-color: #0E95A6; color: #d4d4d4;}') lbl1a.setAlignment(f.Qt.AlignmentFlag.AlignCenter) sub.setGeometry(25, 25, 200, 200) sub.setWindowTitle("subwindow"+str(Window2.count)) self.mdi.addSubWindow(sub) sub.show() def click(self, q): if q.text() == "Cascade": self.mdi.cascadeSubWindows() if q.text() == "Tile": self.mdi.tileSubWindows() if q.text() == "Hide Documents Toolbar": self.toolbar.toggleViewAction().setChecked(True) self.toolbar.toggleViewAction().trigger() if q.text() == "Unhide Documents Toolbar": self.toolbar.toggleViewAction().setChecked(False) self.toolbar.toggleViewAction().trigger() if __name__ == "__main__": app = a.QApplication(s.argv) splash = Window2() splash.show() s.exit(app.exec())
